Green Bank Solar LiFePO4 10 KWH lithium battery 48V 200AH - GB48200
Green Bank Solar LiFePO4 10 KWH lithium battery 48V 200AH - GB48200
Couldn't load pickup availability

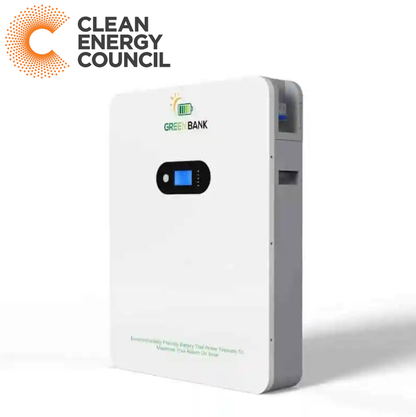

Green Bank Solar LiFePO4 10 KWH lithium battery
- Iron phosphate-lithium power battery
- Long warranty period: 5 years
- Higher energy density, smaller volume for household.
- Support connected in parallel mode for expansion up to 12 batteries.
- This product has a safe operation certificate IEC62619
- Battery management system (BMS): The battery packs built-in BMS monitors its operation and prevents the battery from operating outside design limitations.
- Expandability: This battery pack can be easily expanded by adding expansion battery packs in parallel connection.
Compatible inverters:
High Efficiency
5 Years Product Warranty
Specifications
| Model | GB48200 |
| Usable Capacity | 9.0KWH |
| Voltage | 48v |
| Nominal Voltage | 51.2v |
| Voltage Range | 48-57.6v |
| Recommend Charge Cut-off Voltage | 57.6v |
| Recommend Discharge Cut-off Voltage | 48v |
| MAX. Charge & Discharge Current | 120A @10S |
| Recommend Charge & Discharge Current | ≤80A |
| MAX. Output Power | 5000W |
| Recommend Output Power | 4000W |
| DOD | ≥95% |
| Modules Connection | 1~6in parallel |
| Communication | CAN&RS485 |
| Ingress Protection | IP21 |
| Cycle Life | ≥6000,@25°C, @DOD80% |
| Working Temperature Range | Discharge:-10°C to +55°C, Charge:+0°C to +55°C |
| Net Weight(KG) | 72KG |
| Gross Weight(KG) | 93KG |
| Product Dimension(MM) | 610x160x800MM |
| Package Dimension(MM) | 895x705x335MM |
Recommended Settings
Lithium battery pack is not same as lead-acid battery, so for the devices which you connect with the battery pack
for charging or discharging, such as inverters, MPPT charger controllers or UPS, please implement pre-settings
as recommended settings as below before you launched them.
This battery pack communicates with the following inverter brands :
| Megarevo (INV) | R5KLNA, R6KLNA, R7K6LNA, R8KLNA, R10KLNA |
| Victron (INV) | 48-3000-35 |
| Goodwe (INV) | GW3648D-ES |
| Deye (INV) | SUN-3.6K-SG03LP1-EU, SUN-5K-SG01LP1-US, SUN-6K-SG01LP1-US, SUN-7.6K-SG01LP1-US/EU, SUN-8K-SG01LP1-US/EU |
| LuxPower (INV) | SNA5000 WPV |
| Voltronic (INV) | SPF 3500 ES, SPF 5000 ES |
| Growatt (INV) | HIU-3548/5548 |
| SRNE (INV) | MPS-H 3.5KW /5.5KW |
| Sumry 3.5~5k series (INV) | IVEM5048 |
| FELICITY (INVBMS) | RHI-5K-48ES-5G |
| Solis (INV) | HYD 3000-ES |
| Sofar (INV) | SUNNY ISLAND 6.0H-13 |
| SMA (INV) | PH18,2-5.5KW |
Description
Green Bank is offering10 KWH Lithium Battery 6000 cycles battery with IEC62619 certification
Green Bank lithium batteries provide up to 10 times longer life than lead-acid batteries featuring 10.0 KWH Lithium Battery the biggest lithium battery, and they still provide 80% of rated capacity after 6,000 cycles. Most lithium-ion batteries last twenty years or more.
The average lead-acid battery lasts just five years. Lead-acid batteries also need to be maintained, requiring water replacement to avoid structural damage; if they aren’t maintained properly, their life span is shortened even further. Because lithium batteries require no active maintenance, a one-time purchase guarantees longevity.
Lithium is Quick & Efficient
Lithium can charge and discharge at a high rate providing maximum versatility for all types of applications. Fast charging minimizes downtime, and lithium’s high rate of discharge is perfect for a burst of power.
Lithium’s efficiency is unparalleled, especially under high-stress situations. Unlike lead-acid, temperature fluctuations and energy depletion barely affect lithium’s power delivery. Lithium is the logical choice for applications that will exhaust the batteries or run in extreme weather.
Lithium is the Lightweight Champ
Green Bank LiFePO4 10 KWH Lithium Battery provide more energy than lead-acid batteries and are typically half the mass, reducing concerns about battery weight. Compared to other battery chemistries, lithium provides the same or greater energy at less than half the weight and size. This means more flexibility and easier installation!
