Green Bank 8KW System Inverter + 12 KWH lithium LiFePo4 battery
Green Bank 8KW System Inverter + 12 KWH lithium LiFePo4 battery
Regular price
$12,760.00
Regular price
$13,870.00
Sale price
$12,760.00
Unit price
per
Couldn't load pickup availability
Off Grid 8KW SOLAR inverter with 12KWH Lithium LiFePo4 battery
Custom build off grid systems using high quality products with long life span. OFF Grid 8KW SOLAR inverter with 12KWH Lithium LiFePo4 battery System is pre wired and ready to use.
- Green Bank 8.0 KW off grid inverter.

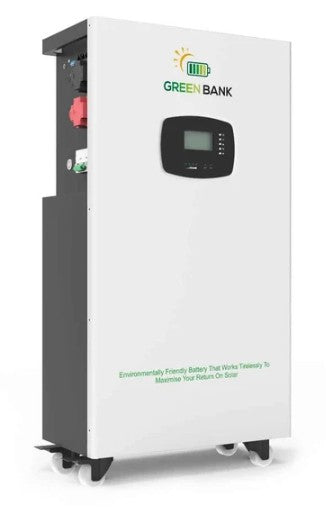

- Green Bank 12 KWH Lithium LiFePo4 battery 9.5 KWH usable capacity with life span of 15+ years

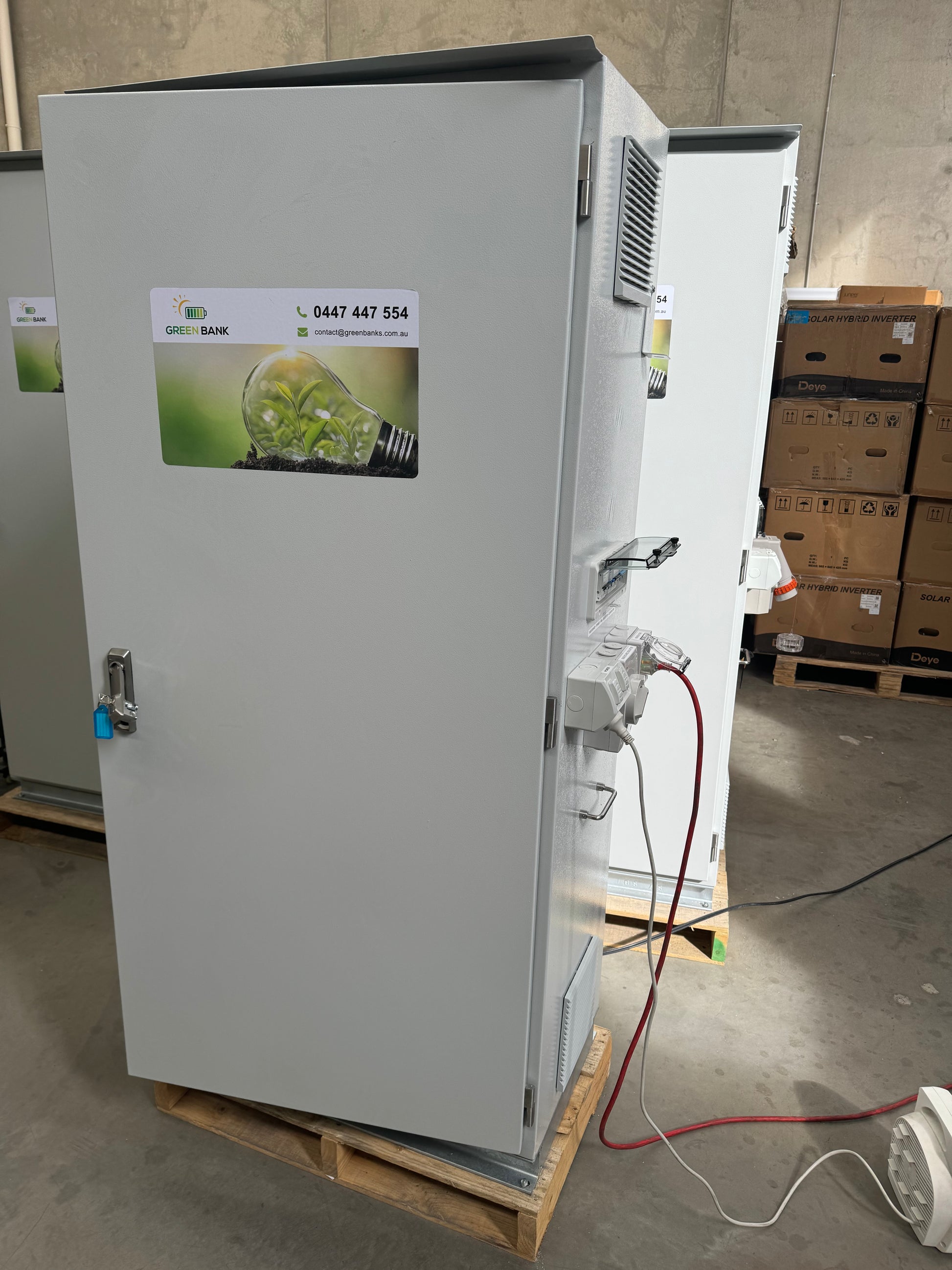

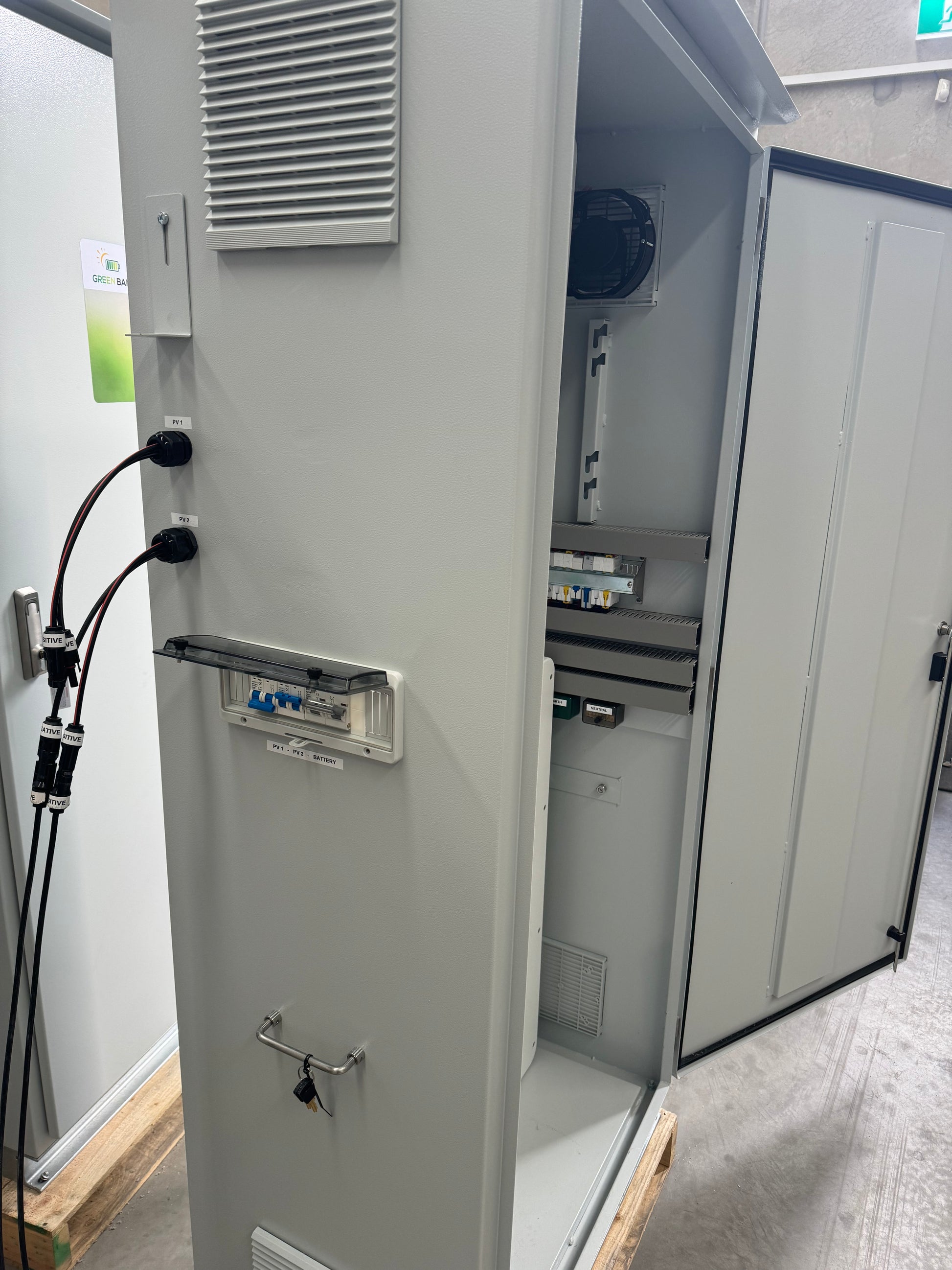

- IP65 Aluminium box pre wired with high temp heat sensor and 2 exhaust fans.

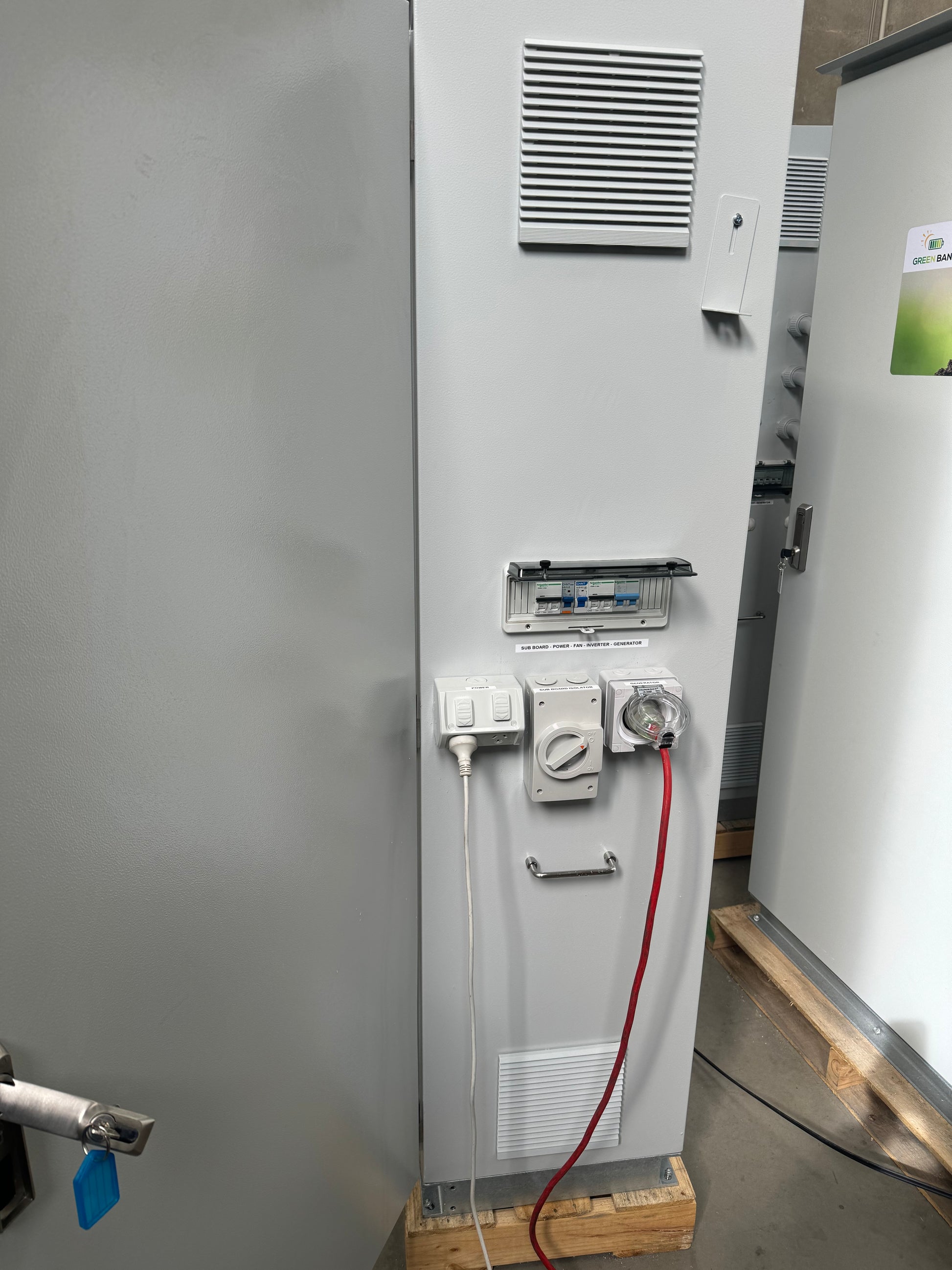

System is plug and play and ready to be connected to your existing panels, also a backup generator/grid outlet is installed in case battery is running flat of load is consuming more than 8000 Watt. Please note: Any international buyer, please contact us to give you shipping quotes and it will be buyer’s responsibility to clear the item from customs and pay all custom’s fees if required.
6000 cycles
5 Years Product Warranty + additional 3 more years for extra cost
Description

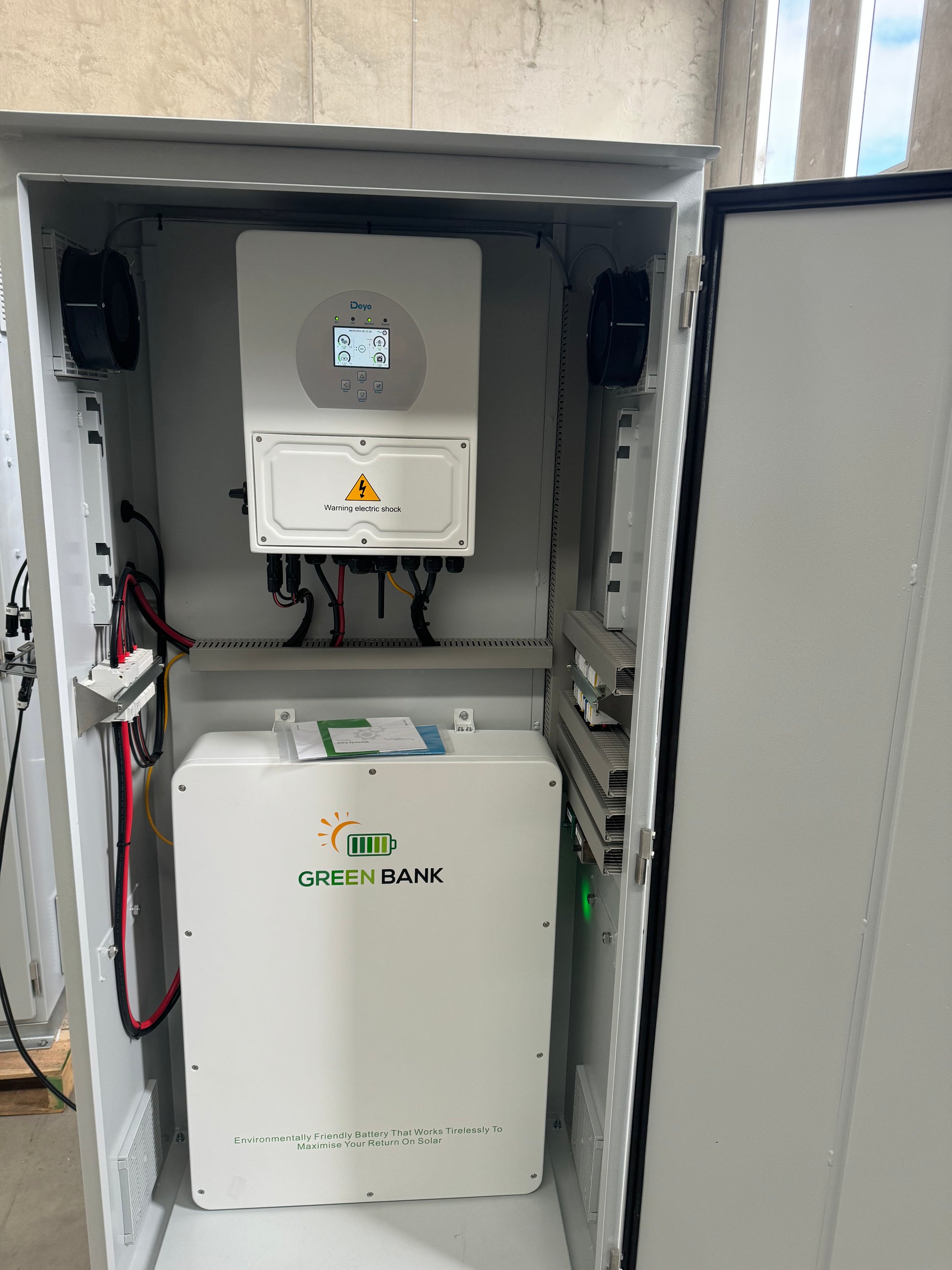

Green Bank introducing a pre-built off grid cabinets which contains 12.0 KWH Offgrid SOLAR Lithium system and 8.0KW Deye hybrid inverter.
this inverter can connect to low voltage Offgrid SOLAR Lithium system whether grid, hybrid or off grid installations
Description
This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size and make the most of your solar system.
An on-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity all together. Stop wasting money on inefficient, overpriced inverters. Invest in one of the most versatile and effective solar power management systems out there today. Deye hybrid inverters are next-level and truly worth of your purchase.
Specifications
MODEL : DY-IVT-8K-SG05LP1
Features

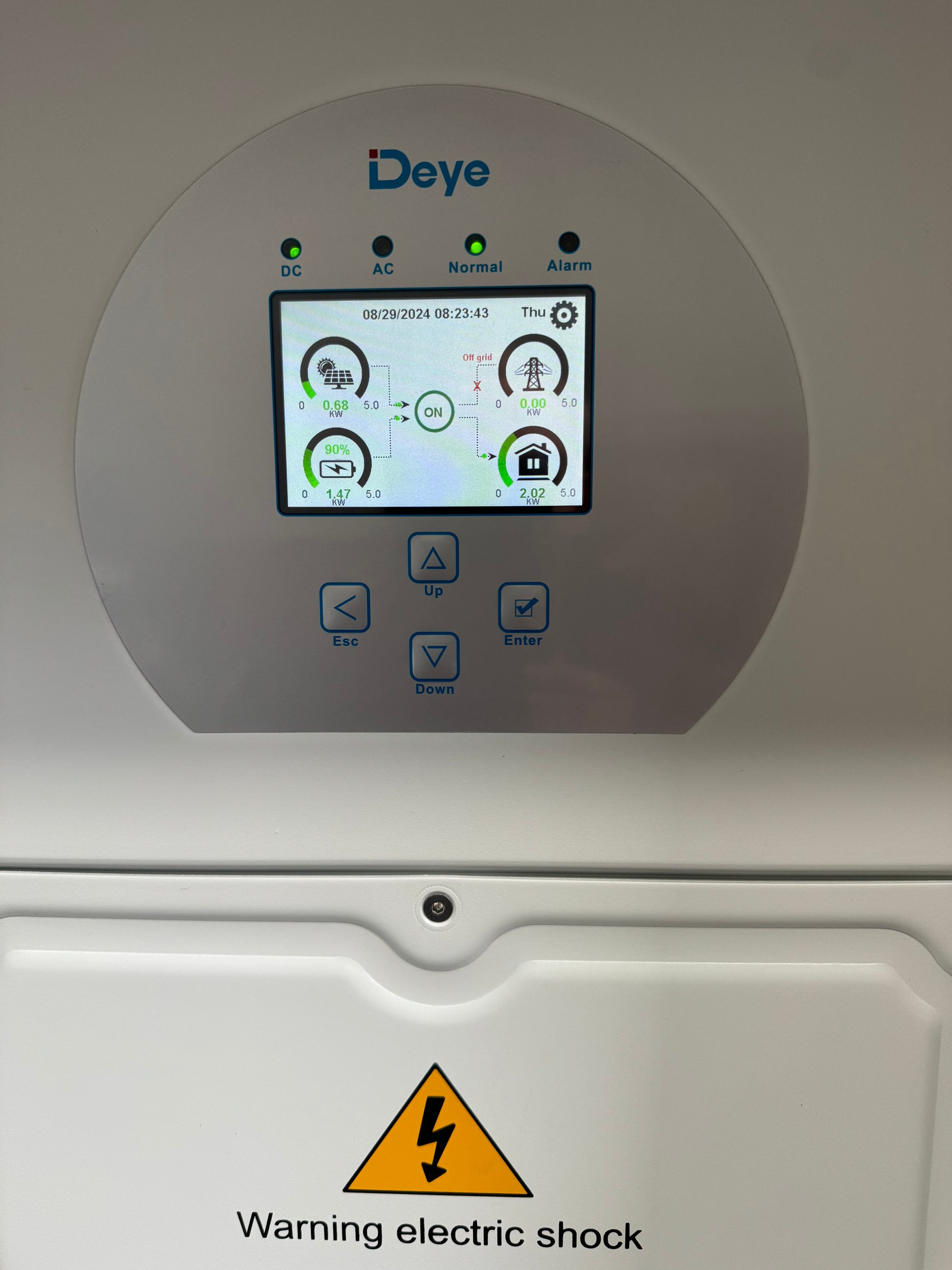

| Colorful touch LCD, IP65 |
| 6 time periods for battery charging/discharging |
| Max.16pcs parallel |
| DC couple and AC couple to retrofit existing solar system |
| Support storing energy from diesel generator |
| 48V low voltage battery, safe and reliable |
| Unique Smart Load application and Grid peak shaving function |
| 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well |
Battery Input Data
| Battery Type: | Lead-acid or Lithium-ion |
| Battery Voltage Range (V): | 40~60 |
| Max. Charging Current (A): | 190 |
| Max. Discharging Current (A): | 190 |
| Charging Curve: | 3 Stages / Equalization |
| External Temperature Sensor: | Yes |
| Charging Strategy for Li-Ion Battery: | Self-adaption to BMS |
PV String Input Data
| Max. DC Input Power (W): | 10400 |
| Rated PV Input Voltage (V): | 370 (125~500) |
| Start-up Voltage (V): | 125 |
| MPPT Voltage Range (V): | 150-425 |
| Full Load DC Voltage Range (V): | 200-425 |
| PV Input Current (A): | 26+26 |
| Max. PV ISC (A): | 34+34 |
| Number of MPPT / Strings per MPPT: | 2/1+1 |
AC Output Data
| Rated AC Output and UPS Power (VA): | 8000 |
| Max. AC Output Power (W): | 8000 |
| AC Output Rated Current (A): | 34.8 |
| Max. AC Current (A): | 34.8 |
| Max. Continuous AC Passthrough (A): | 50 |
| Peak Power (off grid): | 2 time of rated power, 10 S |
| Power Factor: | 0.8 leading to 0.8 lagging |
| Output Frequency and Voltage: | 50Hz/45Hz-55Hz; L/N/PE 230V/ 195.5V-253V, 240V/204V-264V |
| Grid Type: | Single Phase |
| DC injection current (mA): | THD<3% (Linear load<1.5%) |
| Efficiency: | Max. Efficiency:97.60% Euro Efficiency:97.00% MPPT Efficiency: 99.90% |
| Protection: | PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection,Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,Output Shorted Protection, Surge protection |
| Output Over Voltage Protection: | DC Type II/AC Type III |
Certifications and Standards
| Grid Regulation: | AS/NZS 4777.2 |
| Safety EMC / Standard: | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
General Data
| Operating Temperature Range (°C): | -40~60°C, >45°C derating |
| Cooling: | Nature Cooling |
| Noise (dB): | <30 dB |
| Communication with BMS: | RS485; CAN |
| Weight (kg): | 24 |
| Size (mm): | 330W x 580H x237D |
| Protection Degree: | IP65 |
| Installation Style: | Wall-mounted |
| Warranty: | 5 Years |
