Deye Hybrid Solar Inverter SUN-12K-SG01LP1-AU-AM3 single phase
Deye Hybrid Solar Inverter SUN-12K-SG01LP1-AU-AM3 single phase
Couldn't load pickup availability
12 KW single phase 48 Volt PV Battery 3 MPPT with WiFi
SUN-12K-SG01LP1-AU-AM3 | 12KW | Single Phase | 3 MPPT | Hybrid Inverter | Low Voltage Battery
The series, SUN-12K-SG01LP1-AU-AM3, is a single-phase low voltage (48V) hybrid inverter that enables enhanced energy independence and maximizes self-consumption through export limit feature and “time of use” function. With the frequency droop control algorithm, this series product supports single phase and three phase parallel application, and the Max. parallel units is up to 16pcs.

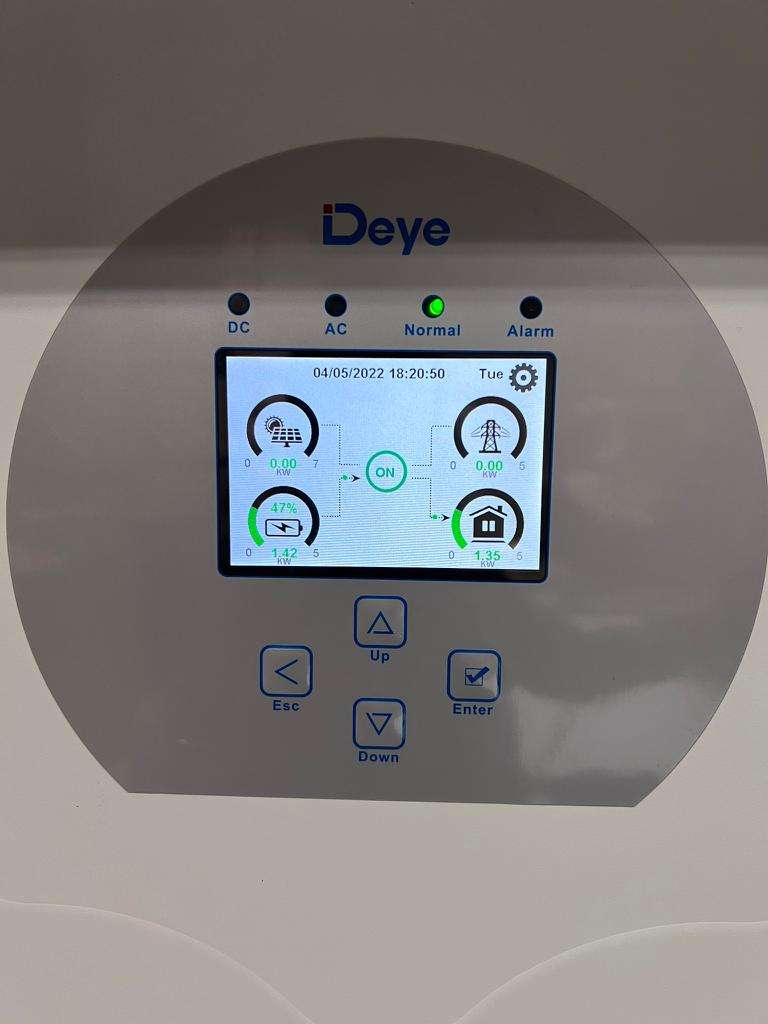

Colorful touch LCD, IP65 protection degree
6 time periods for battery charging/discharging
Max. charging/discharging current of 290A
Frequency droop control, Max.16pcs parallel
DC couple and AC couple to retrofit existing solar system
Support storing energy from diesel generator
 |
High Efficiency |
 |
5 Years Product Warranty |

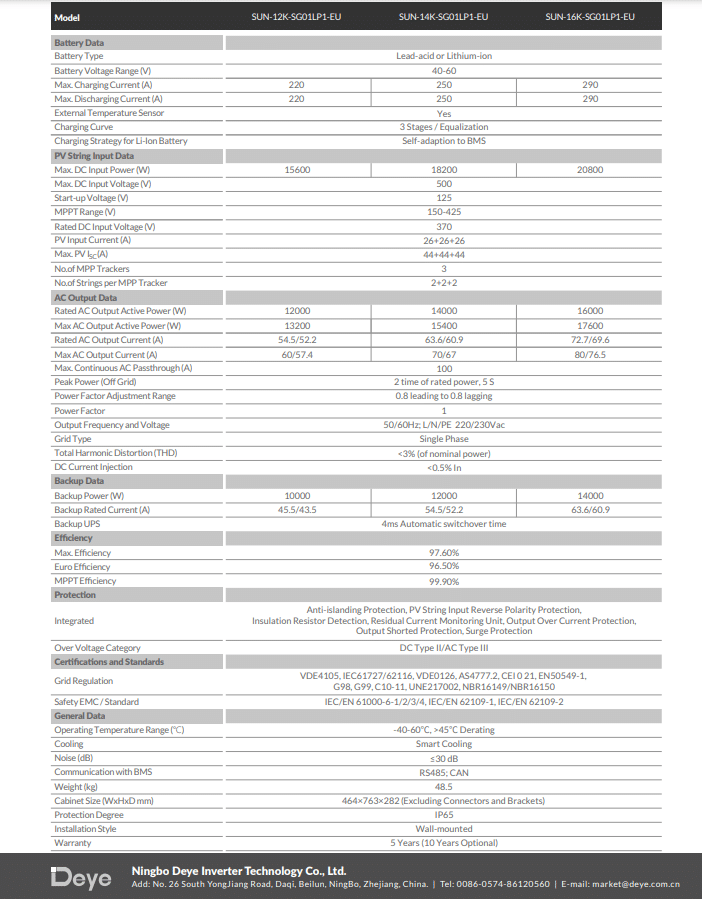

Specifications
| Model | SUN-12K-SG01LP1-AU-AM3 |
| Battery Input Data | |
| Battery Type | Lead-acid or Li-lon |
| Battery Voltage Range (V) | 40~60V |
| Max. Charging Current (A) | 220A |
| Max. Discharging Current (A) | 220A |
| UPS Power (W) | 12000 |
| Charging Curve | 3 Stages / Equalization |
| External Temperature Sensor | Yes |
| Charging Strategy for Li-lon Battery | Self-adaption to BMS |
| PV String Input Data | |
| Max. DC Input Power (W) | 18000W |
| Max. DC Input Voltage (V) | 500V |
| Start-up Voltage (V) | 125 |
| MPPT Range (V) | 125V~425V |
| Rated DC Input Voltage (V) | 370 |
| PV Input Current (A) | 26A + 26A + 26A |
| Max. PV ISC (A) | 44+44+44 |
| No.of Strings Per MPPT Trackers
Number of MPPT tracket |
2/2/2
3/2 |
| AC Output Data | |
| Rated AC Output (W) | 12000W |
| AC Output Rated Current (A) | 52.2 |
| Max. Continuous AC Passthrough (A) | 100 |
| Peak Power (off grid) | 2 time of rated power, 5 S |
| Power Factor | 0.8 leading to 0.8 lagging |
| Output Frequency and Voltage | 50/60Hz; L/N/PE 220/230Vac (single phase) |
| Grid Type | Single Phase |
| DC injection current (mA) | <0.5%1n |
| Backup Data | |
| Backup Power (W) | 10000 |
| Backup Rated Current (A) | 43.5 |
| Backup UPS | 6ms Automatic switchover time |
| Efficiency | |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 97.00% |
| MPPT Efficiency | 99.90% |
| Protection | |
| PV Input Lightning Protection | Integrated |
| Anti-islanding Protection | Integrated |
| PV String Input Reverse Polarity Protection | Integrated |
| Insulation Resistor Detection | Integrated |
| Residual Current Monitoring Unit | Integrated |
| Output Over Current Protection | Integrated |
| Output Shorted Protection | Integrated |
| Output Over Voltage Protection | Integrated |
| Surge protection | DC Type || / AC Type || |
| Certifications and Standards | |
| Grid Regulation | AS/NZS 4777.2 |
| Safety EMC/ Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| General Data | |
| Operating Temperature Range (x) | -45~60℃, >45℃ derating |
| Cooling | Smart cooling |
| Noise (dB) | <30 dB |
| Communication with BMS | RS485; CAN |
| Weight (kg) | 48.5 |
| Size (mm) | 464W×763.4H×282D |
| Protection Degree | IP65 |
| Installation Style | Wall-mounted |
| Warranty | 5 years |
| Features | |
| Max. Number of Parallel (PCS) | 16 |
Recommended Settings

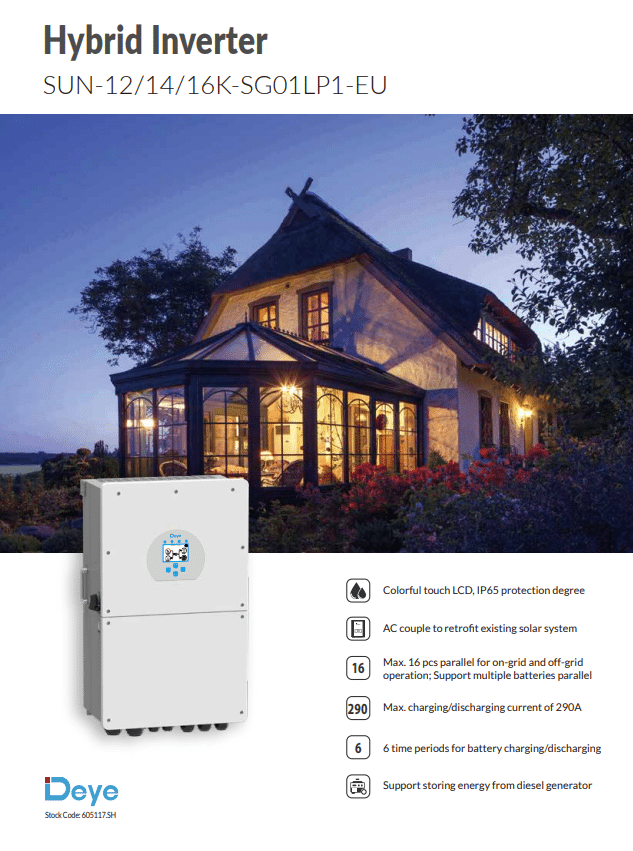

single pic
Description
12KW Deye Hybrid inverter single phase:
The Deye Hybrid 12Kw Inverter single phase , https://greenbanks.com.au/products/deye-hybrid-solar-inverter-sun-12k-sg01lp1-au-am3-single-phase/
this hybrid inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 12K-SG. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout.
It equipped with RS485/CAN port for battery communication
The Deye Hybrid 12Kw Inverter https://www.deyeinverter.com/product/hybrid-inverter-1/sun12-14-16ksg01lp1-1216kw-single-phase-3-mppt-hybrid-inverter.html has the below features:
- Colorful touch LCD, IP65 protection degree
- 6 time periods for battery charging/discharging
- Max. charging/discharging current of 290A
- Support storing energy from diesel generator
-
AC couple to retrofifit existing solar system
-
Max. 16 pcs parallel for on-grid and off-gridoperation; Support multiple batteries parallel
Deye Hybrid 12Kw Inverter Certifications and Standards |
|
| Grid Regulation |
VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1,
G98, G99, C10-11, UNE217002, NBR16149/NBR16150
|
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
Deye General Data |
|
| Operating Temperature Range (℃) | -45~60℃, >45℃ Derating |
| Cooling | Smart cooling |
| Noise (dB) | <30 dB |
| Communication with BMS | RS485; CAN |
| Weight (kg) | 48.5 |
| Size (mm) | 464W×798.4H×300D |
| Protection Degree | IP65 |
| Installation Style | Wall-mounted |
| Warranty | 5 years |
An on-grid inverter’s job is to convert DC power generated from the PV array into usable AC power.
Hybrid inverters go a step further and work with batteries to store excess power as well. moreover, In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity all together.
in fact, 13Kw single phase inverter is capable of Emergency Power supply to part of the loads. so when Grid power is out, your house can enjoy having power to certain parts of the house.
Additionally, The Deye Hybrid 12Kw Inverter adopts low 48V variety of batteries including Green Bank Lithium battery ranges.
The SUN-12K-SG01LP1-AU-AM3 is one of the biggest capacity single phase Inverter in the global market.
