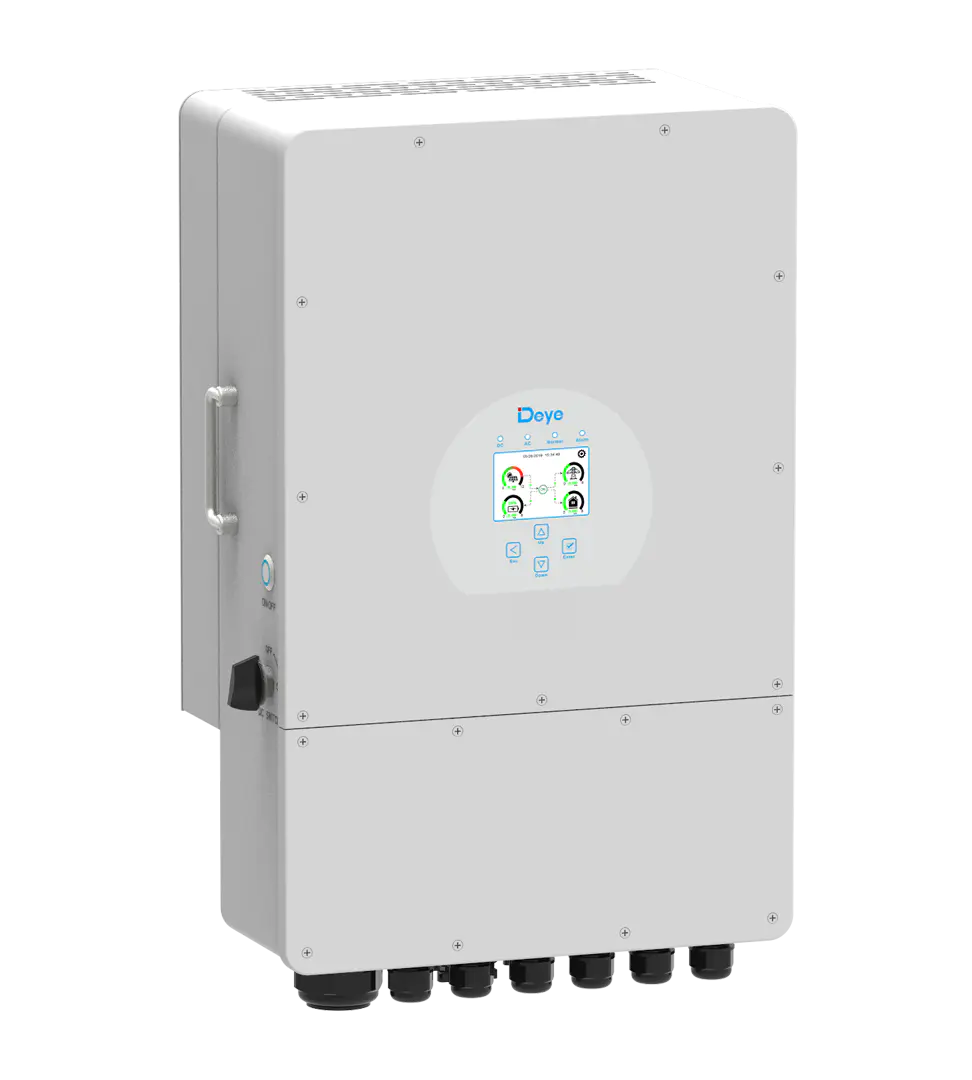

Deye Hybrid Solar Inverter 12KW 3Phase SUN-12K-SG01-AU
Deye Hybrid Solar Inverter 12KW 3Phase SUN-12K-SG01-AU
Regular price
$5,200.00
Regular price
$5,940.00
Sale price
$5,200.00
Unit price
per
Couldn't load pickup availability
12KW 3 phase 48V PV battery MPPT with WIFI
SUN-12K-SG01LP3 | 12KW | Three Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery
SUN 12K-SG is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.
- 100% unbalanced output, each phase max. output up to 50% rated power
- 48V low voltage battery, transformer isolation design
- 6 time periods for battery charging/discharging
- Max. charging/discharging current of 240A
- Frequency droop control, Max.16pcs parallel
- DC couple and AC couple to retrofit existing solar system
- Support storing energy from diesel generator
 |
High Efficiency |
 |
5 Years Product Warranty |
Specifications
| Model | SUN-12K-SG04LP3-AU |
| Battery Input Data | |
| Battery Type | Lead-add or Li-lon |
| Battery Voltage Range (V) | 40~60V |
| Max. Charging Current (A) | 240A |
| Max. Discharging Current (A) | 240A |
| Charging Curve | 3 Stages / Equalization |
| External Temperature Sensor | Optional |
| Charging Strategy for Li-lon Battery | Self-adaption to BMS |
| PV String Input Data | |
| Max. DC Input Power (W) | 18000W |
| PV Input Voltage (V) | 550V(160V~800V) |
| MPPT Range (V) | 200V~650V |
| Start-up Voltage (V) | 160V |
| PV Input Current (A) | 26A + 13A |
| No.of MPPT Trackers | 2 |
| No.of Strings Per MPPT Trackers | 2/2 + 1 |
| AC Output Data | |
| Rated AC Output and UPS Power (W) | 12000W |
| Max. AC Output Power (W) | 12000W |
| Peak Power (off grid) | 2 times of rated power, 10 S |
| AC Output Rated Current (A) | 17.4A |
| Max. AC Current (A) | 17.4A |
| Max. Continuous AC Passthrough (A) | 45A |
| Output Frequency and Voltage | 50/60Hz; 230/400Vac (Three phase) |
| Grid Type | Three Phase |
| Max. Three-phase Unbalanced Output Current（A） | 26.1 |
| Efficiency | |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 97.00% |
| MPPT Efficiency | 99.90% |
| Protection | |
| PV Input Lightning Protection | Integrated |
| Anti-islanding Protection | Integrated |
| PV String Input Reverse Polarity Protection | Integrated |
| Insulation Resistor Detection | Integrated |
| Residual Current Monitoring Unit | Integrated |
| Output Over Current Protection | Integrated |
| Output Shorted Protection | Integrated |
| Output Over Voltage Protection | Integrated |
| Surge protection | DC Type || / AC Type || |
| Certifications and Standards | |
| Grid Regulation | IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1 |
| Safety EMC/ Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| General Data | |
| Operating Temperature Range (x) | -25~60x , >45x Derating |
| Cooling | Smart cooling |
| Noise (dB) | <30 dB |
| Communication with BMS | RS485; CAN |
| Weight (kg) | 36.8 |
| Size (mm) | 420WX658HX281D |
| Protection Degree | IP65 |
| Installation Style | Wall-mounted |
| Warranty | 5 years |
