Green Bank Solar LiFePO4 10 KWH lithium battery 48V 200AH – WG48200E 6500 cycles

Green Bank Solar LiFePO4 10 KWH lithium battery 48V 200AH – WG48200E 6500 cycles

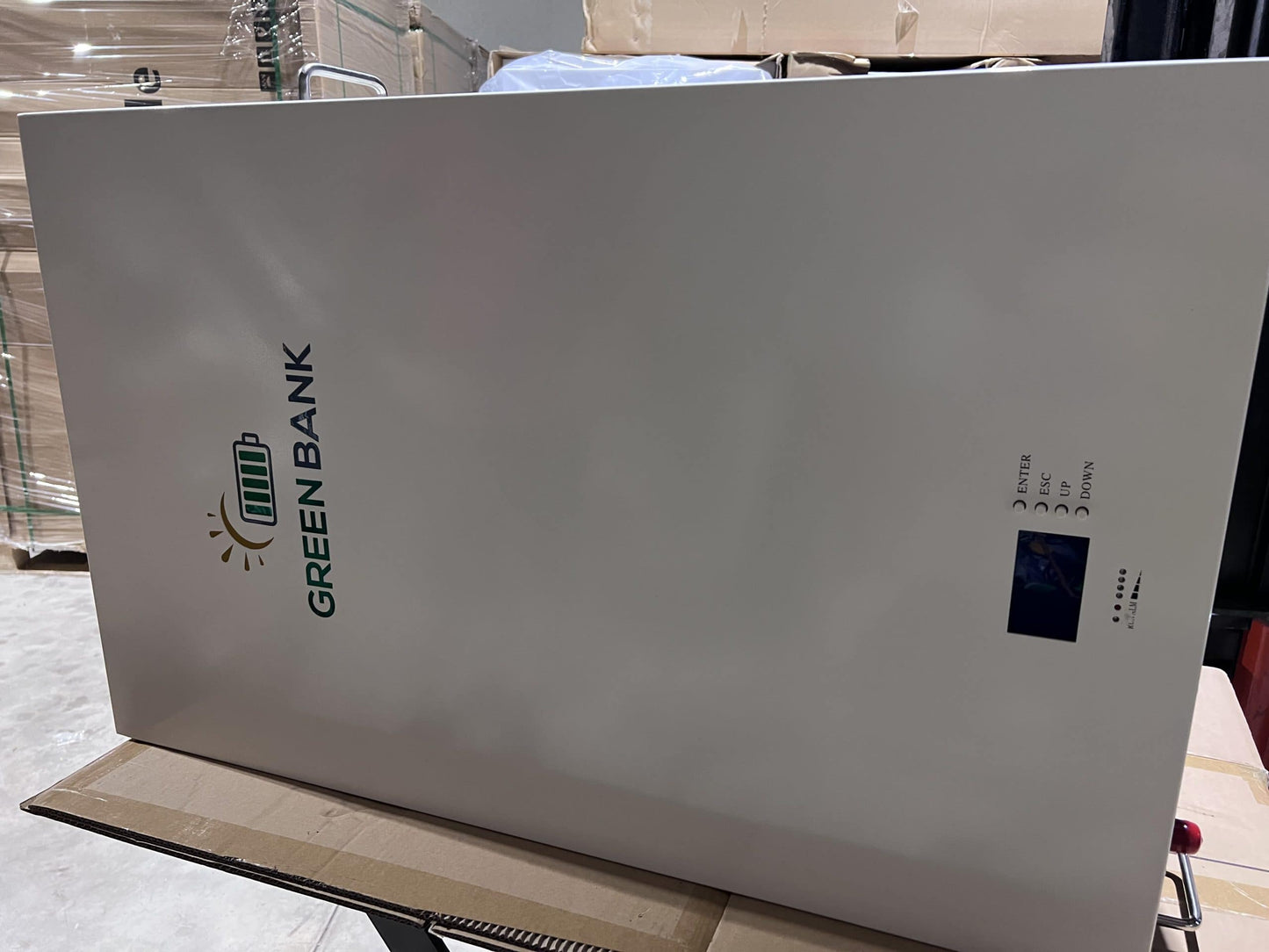

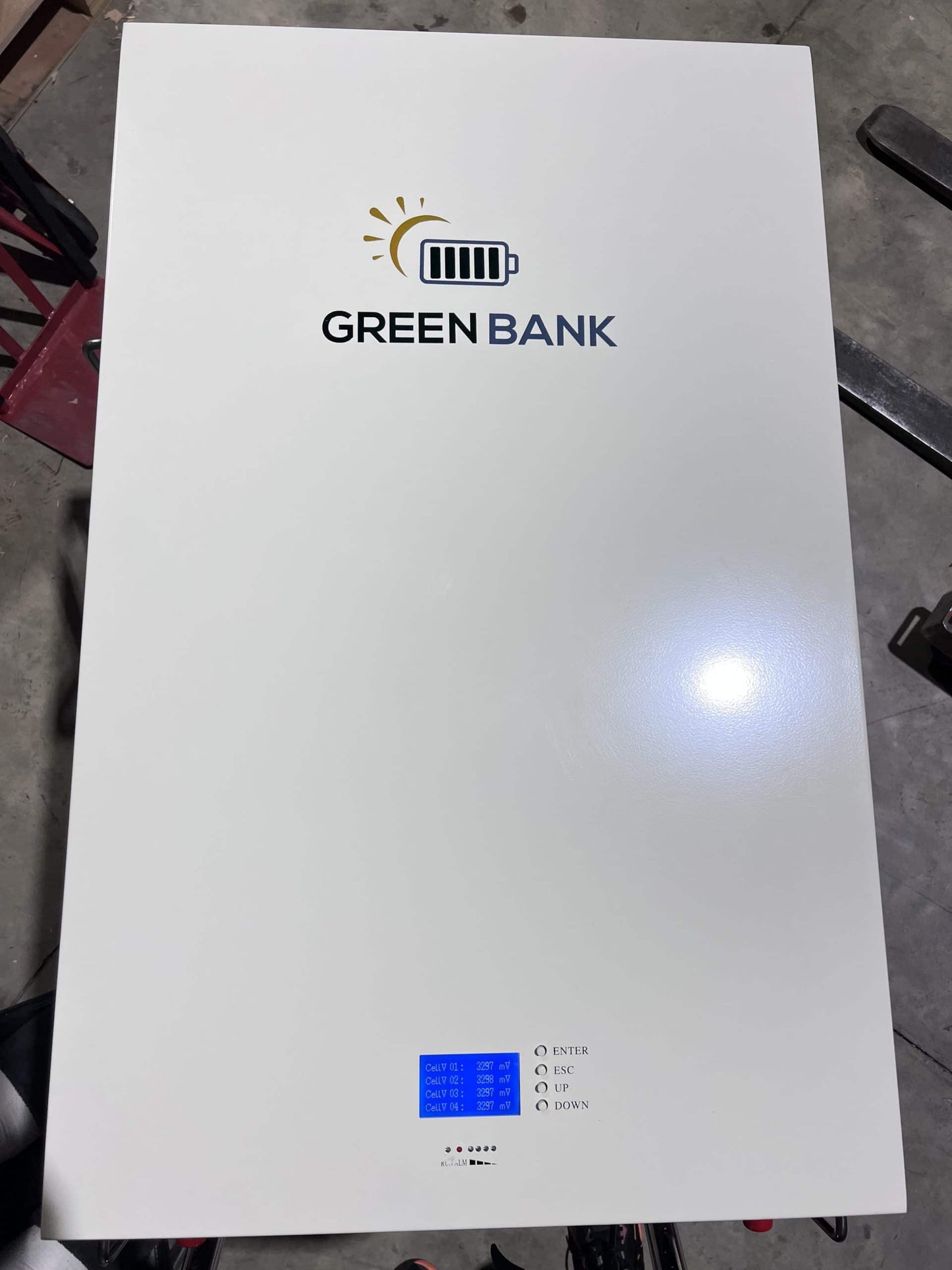

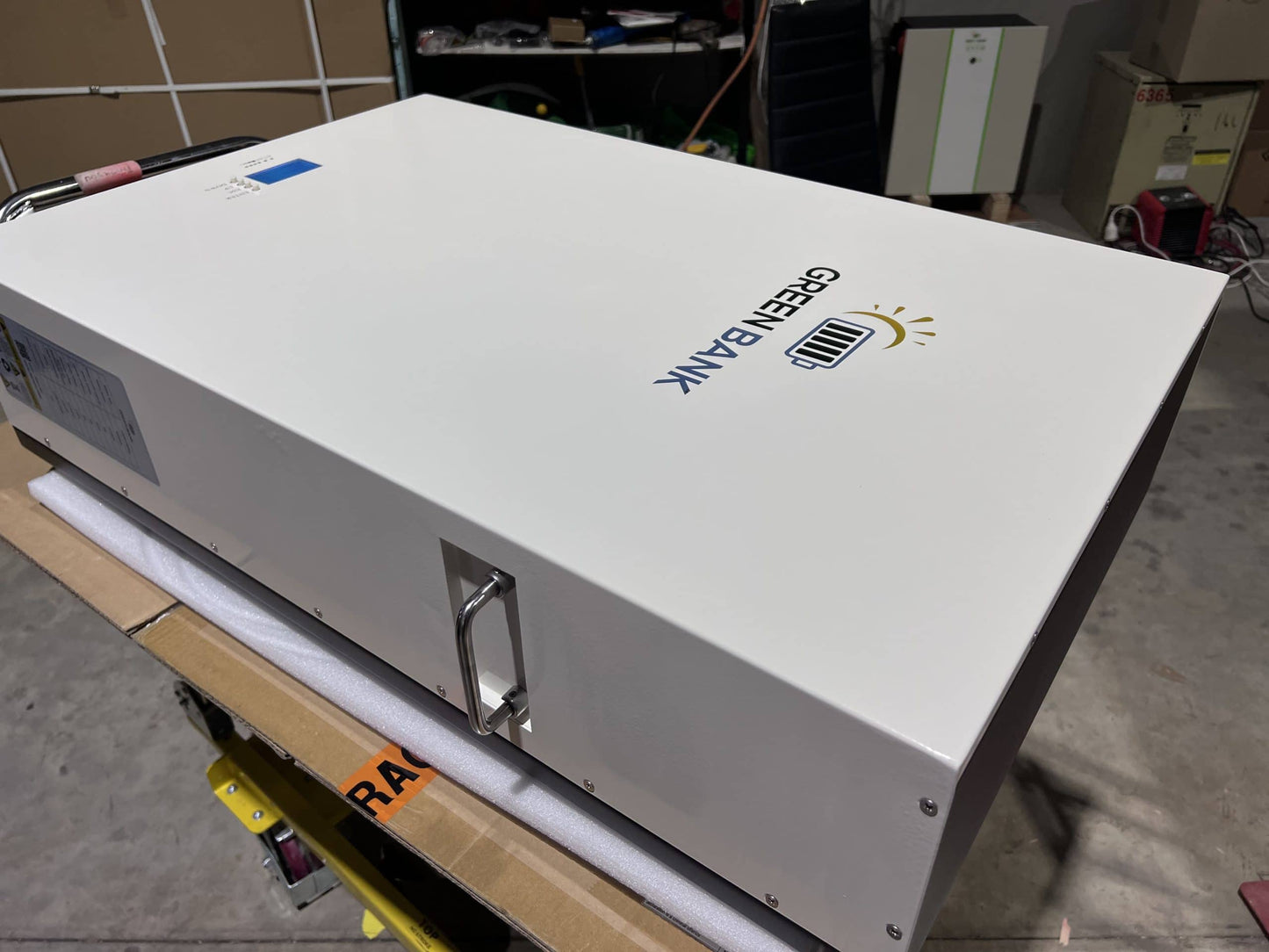

Green Bank Solar LiFePO4 10 KWH lithium battery

$6,680.00

Shipping charges

385

High Efficiency

15 Years Product Warranty, 26+ years lifespan

Model No WG48200E
Voltage 51.2V
Capacity 200Ah
Energy 10.24KwH
Dimensions (LxWxH) 735x525x190(220)mm
Weight 102.5kg
Life time (25ºC) 15 years
Life cycles(80% DOD, 25°C) 6500 Cycles
Storage time / temperature 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C
Operation temperature -20°C to 60°C @60+/-25% Relative Humidity
Storage temperature 0°C to 45°C @60+/-25% Relative Humidity
Lithium Battery Standard UL1973, UL9540A, IEC62619,CE-EMC, UN38.3, MSDS
Enclosure protection rating IP21
Operation voltage 51.2 Vdc
Max. charging voltage 56Vdc
Cut-off Discharge Voltage 46 Vdc
Max. charging and discharging current 150A
  • Iron phosphate-lithium power battery
  • Long warranty period:15 years
  • Higher energy density, smaller volume for household.
  • Support connected in parallel mode for expansion up to 20 batteries.
  • Battery management system (BMS): The battery packs built-in BMS monitors its operation and prevents the battery from operating outside design limitations.
  • Expand ability: This battery pack can be easily expanded by adding expansion battery packs in parallel connection.



Lithium battery pack is not same as lead-acid battery, so for the devices which you connect with the battery pack for charging or discharging, such as inverters, MPPT charger controllers or UPS, please implement pre-settings as recommended settings as below before you launched them.

Max. Charging Voltage 56V
Floating charging Voltage 56V
Max. Charging Current 150A*N
Cut-off voltage 46V

GREEN BANK ELITE RANGE:

Green Bank introducing the Elite range 10KWH Lithium Battery 200AH with 6500 cycles

Battery features:

  • 10KWH Lithium Battery has grade a cells with over 6500 times cycle life besides, offer 15 years extended warranty available to increase ROI
  •  Build in intelligent BMS having protection functions in addition, over-discharge, over-charge, over-current and over-high or low temperature,
  • equally important, The system can automatically manage charge and discharge state and balance current and voltage of each cell.
  • 10KWH Lithium Battery support max 16pcs parallel besides, stack power.
  • max charge voltage of 56V nevertheless, max charge and discharge 150A= 7680Wh to AC loading.
  • furthermore, matched over 16 brands hybrid inverters in the world the majority of offgrid inverters.
  • 10KWH Lithium Battery has a built in 200A double industrial heavy-duty power switch to ensure the battery safety, moreover there  a fues installed on the negative port of the BMS to prevent over-current spikes.
  • furthermore each battery should be installed with DC 125A circuit breaker to ensure complete safetly operation.
MODEL NO WG48200E
Battery Chemistry LiFePO4
Capacity (Ah) 200
Scalability Max.16pcs in parallel (162kWh)
Nominal Voltage (V) 51.2
Operating Voltage(V) 46-56
Energy (kWh) 10.24
Usable Energy (kWh) 9.22
Charge/Discharge Current (A) Recommend 100
Max. 150
Peak(2mins,25℃) 200
Other Parameter
Recommend Depth of Discharge 90%
Dimension (W/H/D,mm) 735*525*190
Weight Approximate (kg) 102.50

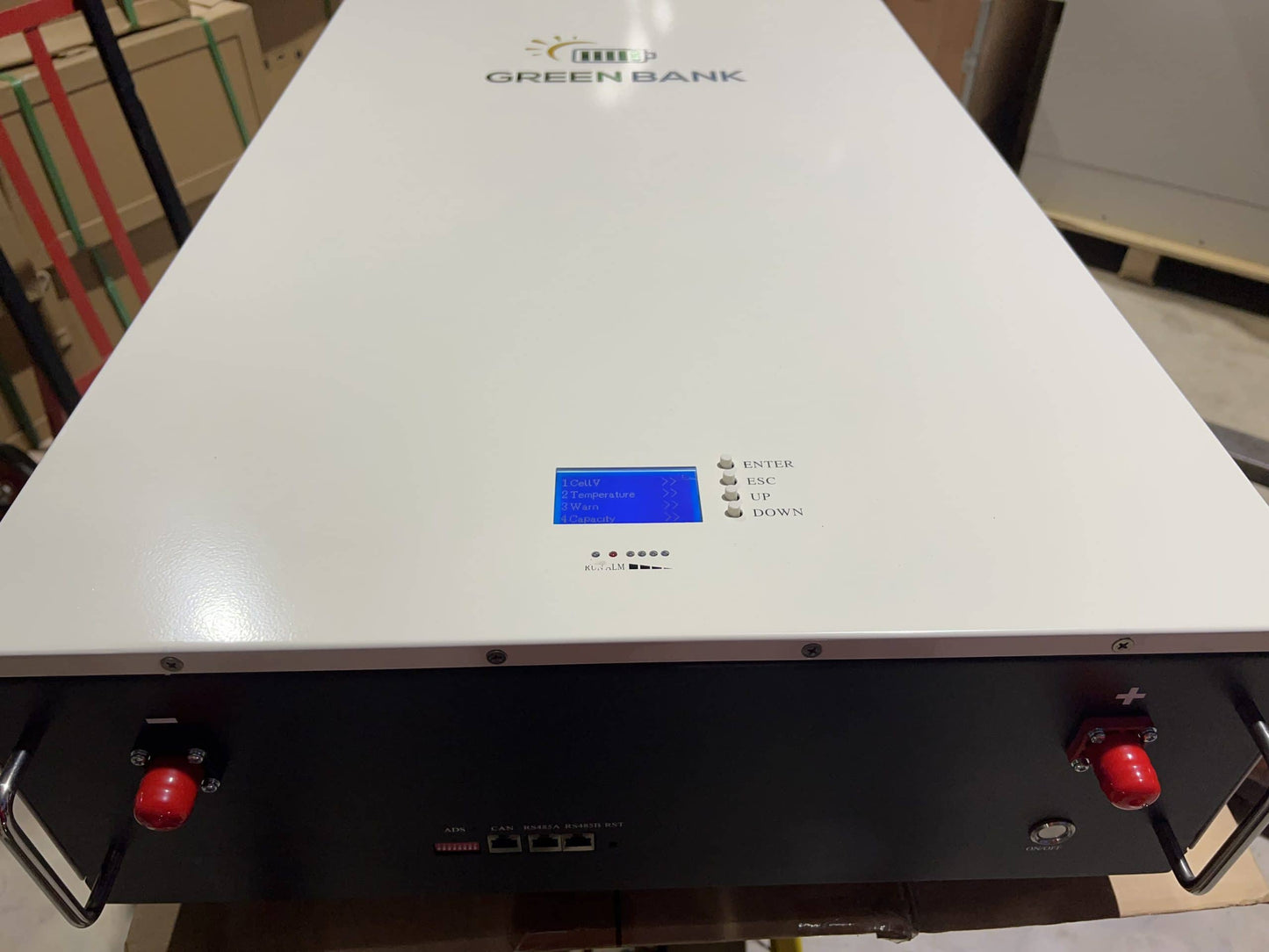

Master LED Indicator 4 LED (SOC:25%~100%)
2 LED (working, alarming, protecting)
IP Rating of Enclosur IP20
Working Temperature Charge:0℃~55℃ Discharge:-20℃~55℃
Storage Temperature 0℃~35℃
Humidity 5%~95%
Altitude ≤2000m
Cycle Life (25±2℃,0.5C/0.5C,80%EOL) ≥6500

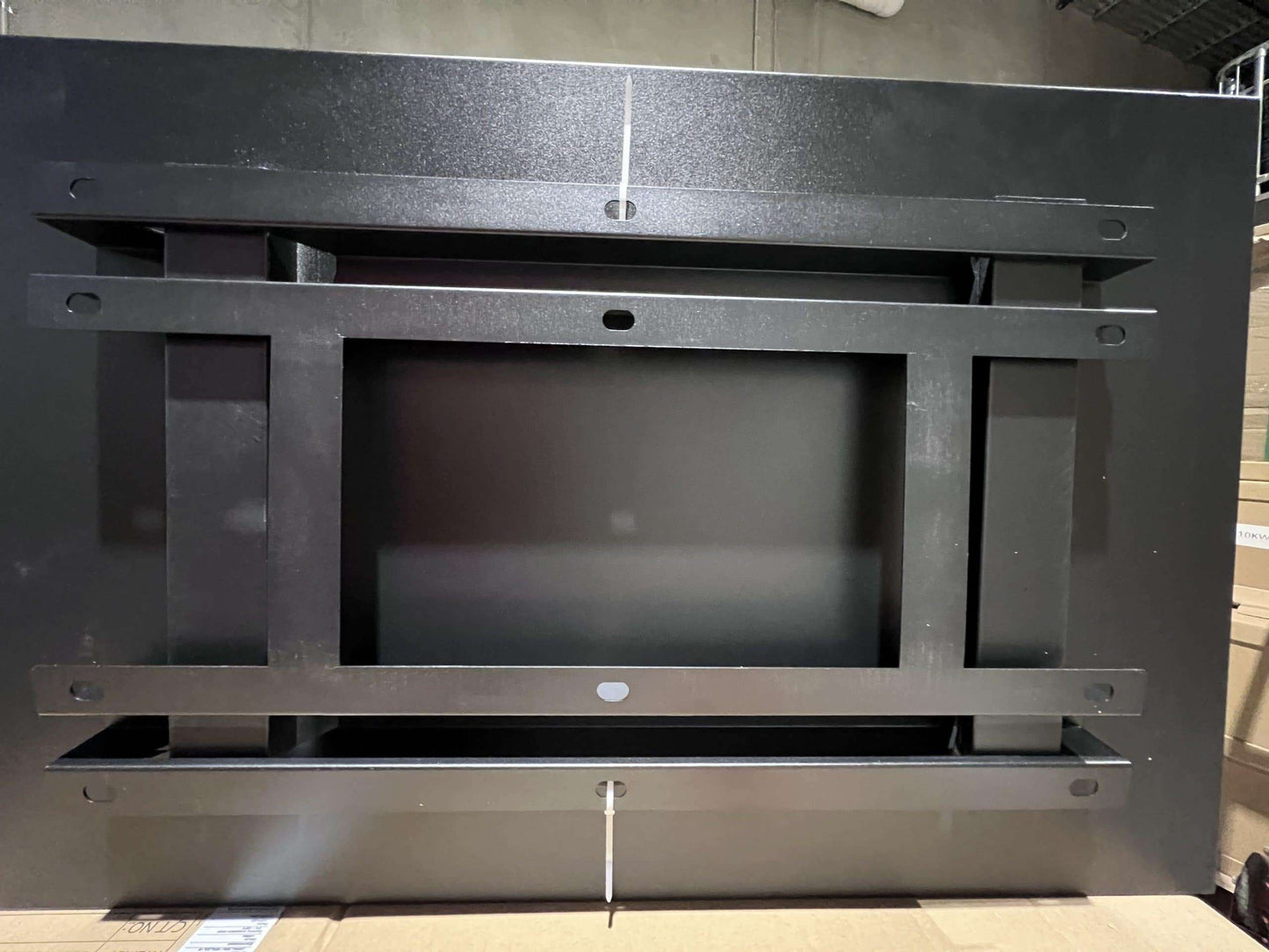

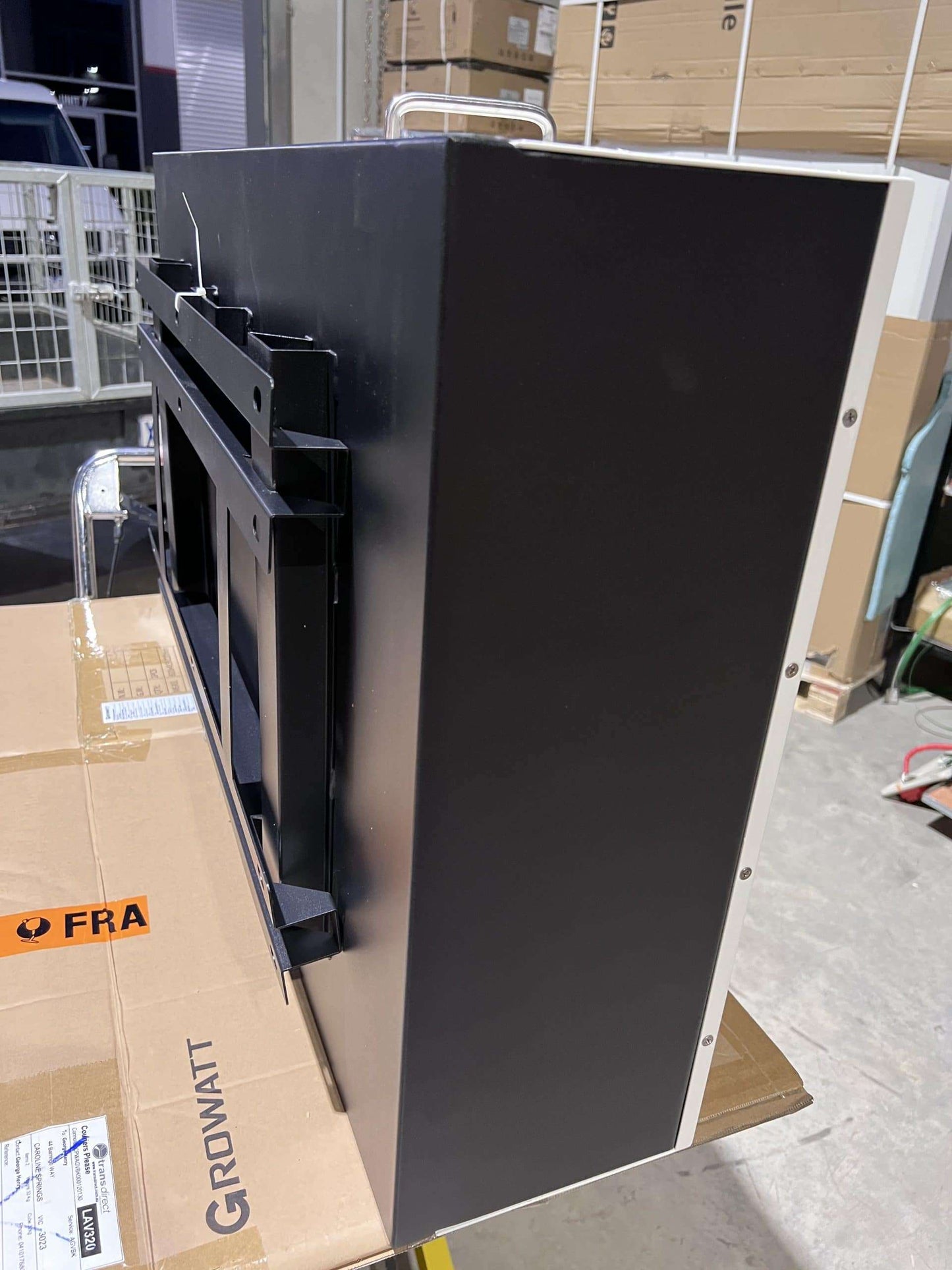

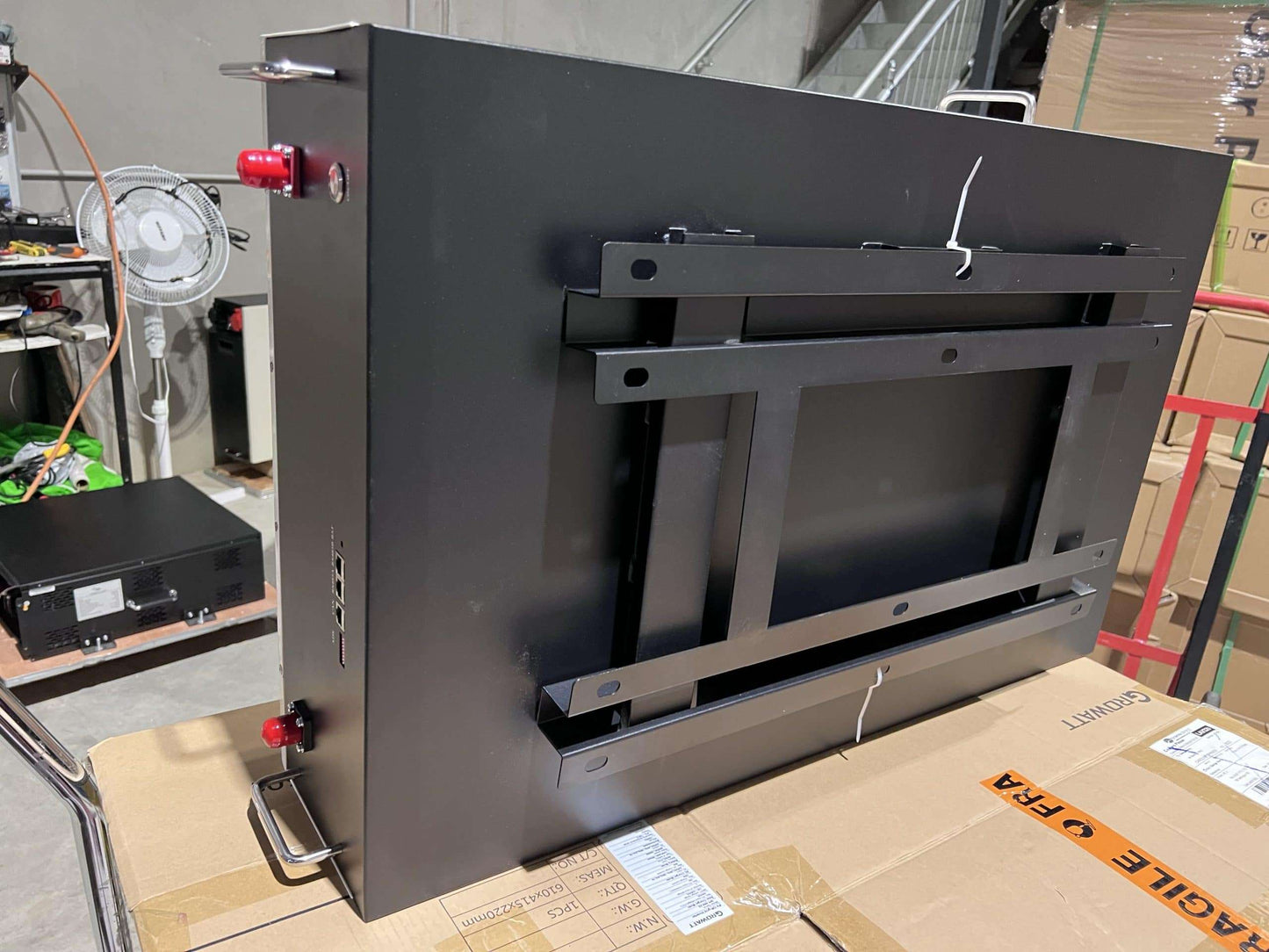

Installation Wallmounted

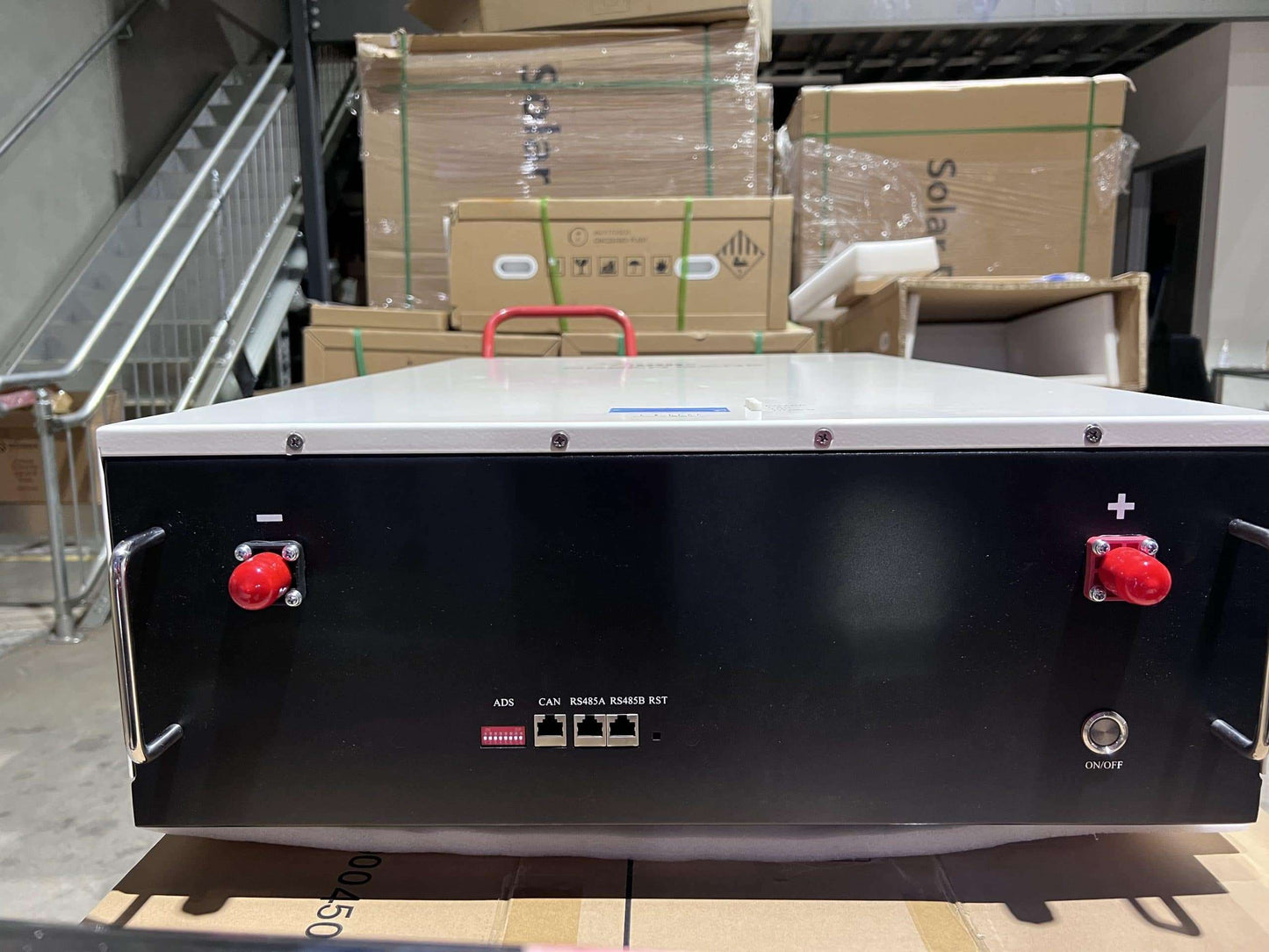

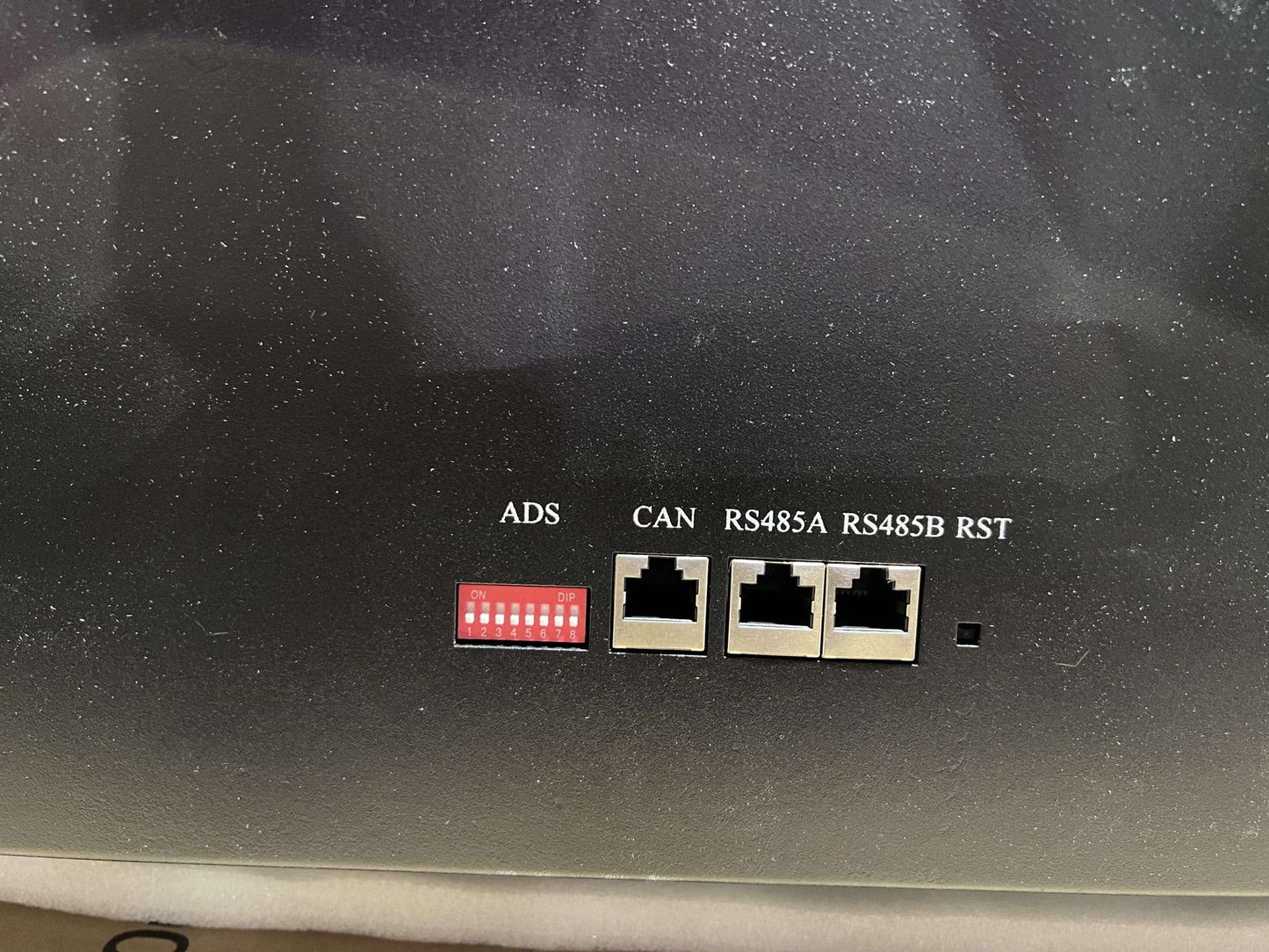

Communication Port CAN2.0, RS485
Warranty Period [3] 15 years
Life Cycle Power During Warranty Period 44.84MWh@80% EOL
Certification UL1973, CB-IEC62619, CE-EMC, MSDS, UN38.3

Battery operations:

Firstly, this 10KWH Lithium Battery can communicate with wide range of inverters via CANBuS or RS485.

Secondly, This will enable the inverter to communicate fully and read the battery working parameters from the in-built battery management system.

Lastly, 10KWH Lithium Battery elite can be working for long time without human supervision or intervension.

Finally, the design of the lithium ion phosphat battery makes them extremly safe to use in extreme tempture.
