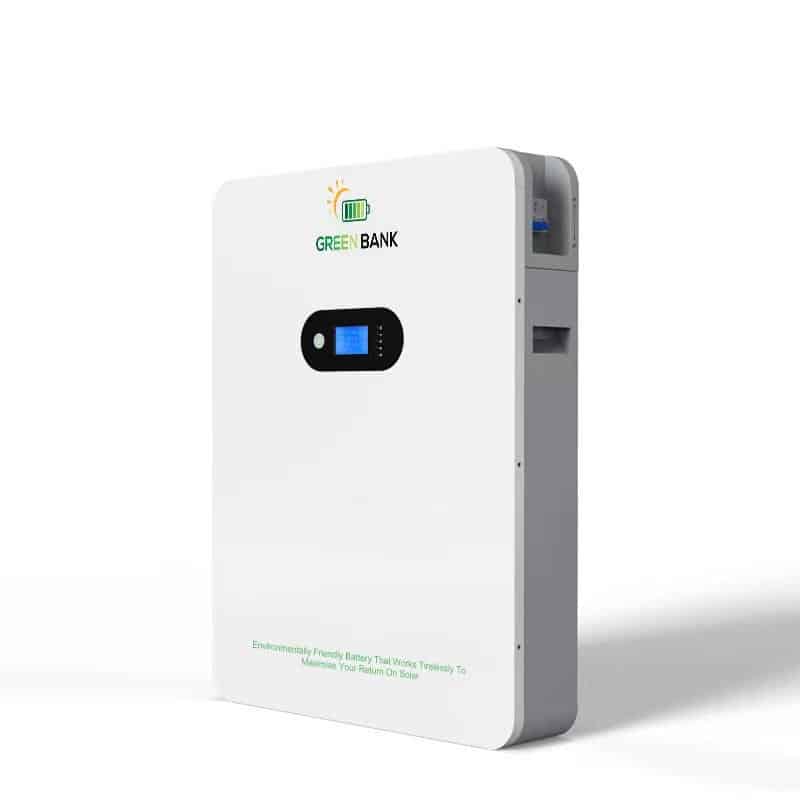

Green Bank Solar LiFePO4 10 KWH lithium battery 48V 200AH – GB48200

Green Bank Solar LiFePO4 10 KWH lithium battery 48V 200AH – GB48200

Green Bank Solar LiFePO4 10 KWH lithium battery

$4,390.00

Shipping charges

385

High Efficiency

5 Years Product Warranty

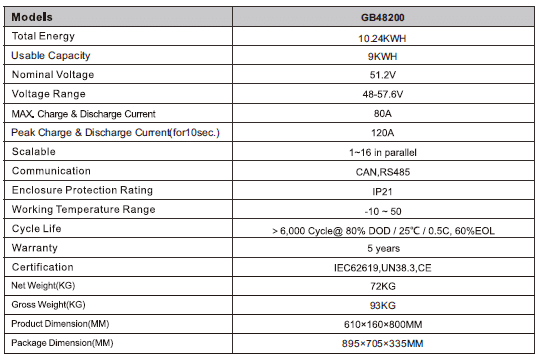

Model GB48200
Usable Capacity 9.0KWH
Voltage 48v
Nominal Voltage 51.2v
Voltage Range 48-57.6v
Recommend Charge Cut-off Voltage 57.6v
Recommend Discharge Cut-off Voltage 48v
MAX. Charge & Discharge Current 120A @10S
Recommend Charge & Discharge Current ≤80A
MAX. Output Power 5000W
Recommend Output Power 4000W
DOD ≥95%
Modules Connection 1~6in parallel
Communication CAN&RS485
Ingress Protection IP21
Cycle Life ≥6000,@25°C, @DOD80%
Working Temperature Range Discharge:-10°C to +55°C, Charge:+0°C to +55°C
Net Weight(KG) 72KG
Gross Weight(KG) 93KG
Product Dimension(MM) 610x160x800MM
Package Dimension(MM) 895x705x335MM
  • Iron phosphate-lithium power battery
  • Long warranty period: 5 years
  • Higher energy density, smaller volume for household.
  • Support connected in parallel mode for expansion up to 12 batteries.
  • This product has a safe operation certificate IEC62619
  • Battery management system (BMS): The battery packs built-in BMS monitors its operation and prevents the battery from operating outside design limitations.
  • Expandability: This battery pack can be easily expanded by adding expansion battery packs in parallel connection.

Compatible inverters:

compatiable inverters
compatiable inverters



Lithium battery pack is not same as lead-acid battery, so for the devices which you connect with the battery pack
for charging or discharging, such as inverters, MPPT charger controllers or UPS, please implement pre-settings
as recommended settings as below before you launched them.

This battery pack communicates with the following inverter brands :

Megarevo(INV) Victron(INV) Goodwe(INV) Deye(INV) LuxPower(INV) Voltronic(INV) Growatt(INV) SRNE(INV) Sumry3.5~5k series(INV) FELICITY(INVBMS) Solis(INV) Sofar(INV) SMA(INV) MUST(INV)
R5KLNA
R6KLNA
R7K6LNA
R8KLNA
R10KLNA
48-3000-35 GW3648D-ES SUN-3.6K-SG03LP1-EU
SUN-5K-SG01LP1-US
SUN-6K-SG01LP1-US
SUN-7.6K-SG01LP1-US/EU
SUN-8K-SG01LP1-US/EU
SNA5000 WPV SPF 3500 ES
SPF 5000 ES
HIU-3548/5548 MPS-H 3.5KW /5.5KW IVEM5048 RHI-5K-48ES-5G HYD 3000-ES SUNNYISLAND 6.0H-13 PH18,2-5.5KW



If you are not using any of the above inverter brands, you need to make sure you code the below recommended settings into your off-grid inverter



Max charge voltage : 57.6v

Max charge current : 120A

Cut-off / low voltage: 48v



Green Bank is offering10 KWH Lithium Battery 6000 cycles battery with IEC62619 certification

10 KWH Lithium Battery – 5 years warranty – 6000 cycles – 20+ years lifespan – Wall mount

Explore the Benefits of Lithium Batteries

Compared to lead-acid and other lithium batteries, lithium iron phosphate batteries offer significant advantages, including improved discharge and charge efficiency, longer life span and the ability to deep cycle while maintaining power. LiFePO4 batteries often come with a higher price tag, but a much better cost over the life of the product. No maintenance and super long life make them a worthwhile investment and a smart long-term solution see full specs of 10.0 KWH Lithium Battery

Green Bank lithium batteries provide up to 10 times longer life than lead-acid batteries featuring 10.0 KWH Lithium Battery the biggest lithium battery, and they still provide 80% of rated capacity after 6,000 cycles. Most lithium-ion batteries last twenty years or more.

The average lead-acid battery lasts just five years. Lead-acid batteries also need to be maintained, requiring water replacement to avoid structural damage; if they aren’t maintained properly, their life span is shortened even further. Because lithium batteries require no active maintenance, a one-time purchase guarantees longevity.

Lithium is Quick & Efficient

Lithium can charge and discharge at a high rate providing maximum versatility for all types of applications. Fast charging minimizes downtime, and lithium’s high rate of discharge is perfect for a burst of power.

Lithium’s efficiency is unparalleled, especially under high-stress situations. Unlike lead-acid, temperature fluctuations and energy depletion barely affect lithium’s power delivery. Lithium is the logical choice for applications that will exhaust the batteries or run in extreme weather.

Lithium is the Lightweight Champ

Green Bank LiFePO4 10 KWH Lithium Battery provide more energy than lead-acid batteries and are typically half the mass, reducing concerns about battery weight. Compared to other battery chemistries, lithium provides the same or greater energy at less than half the weight and size. This means more flexibility and easier installation!
